Product Details:

Aristo® Mig 4004i Pulse | Aristo® Feed 3004, U6/U82 | Aristo® YardFeed 2000, U6

• Low weight multi process inverter equipment

Introduction

Aristo® Mig 4004i Pulse is an electronic controlled MIG/MAG/MMA lightweight inverter based welding power source, designed for high productivity and quality welding applications.

The floor space (footprint) and the weight are reduced by 70% compared to conventional equipment. The new compact design combined with inverter technology has made Aristo® 4004i Pulse truly transportable. Fan on demand cooling systems increase the welding time of the equipment. The cooling unit COOL 1 provides cooling of liquid-cooled torches to support great comfort to the welder. The cooling fans in the power source and the cooling system for the torch automatically turn off after 6.5 minutes inactivity, significantly reducing the idle time energy consumption. This 4th generation inverter offers considerable improved efficiency with a power factor better than 0.95. This gives you minimized energy consumption and will offer significant reductions in your energy cost with the same welding conditions

Features :

• High Duty Cycle – suitable for long runs

• Wide mains input tolerance: 380 - 440 V +/- 10%

• Generator compatible – for on site use

• Standby Function – energy saving system

• Pre-programmed synergic lines to ensure optimum settings with a wide choice of materials, wire dimensions and gas combinations

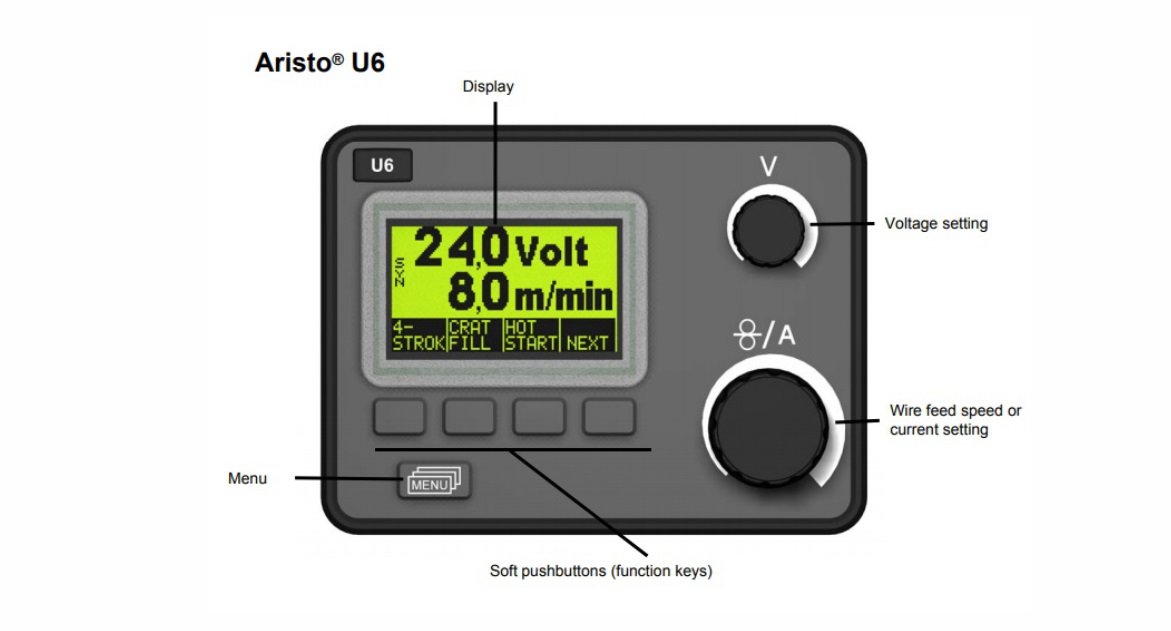

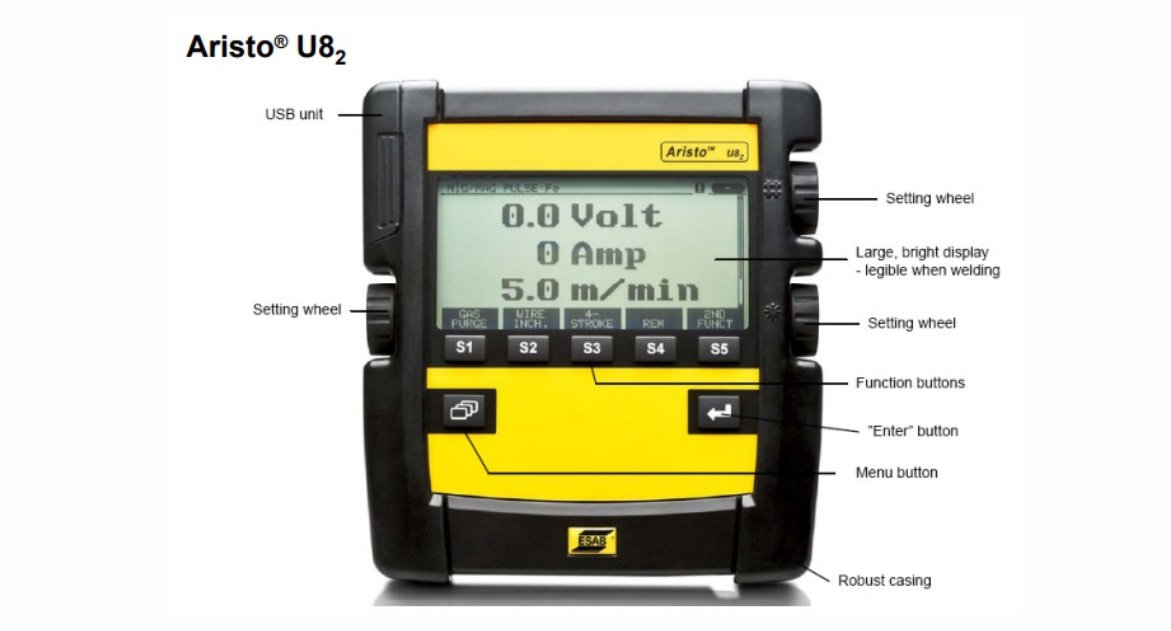

• Memory for 10 (U6) or 255 (U82) welding schedules

• Customized synergic lines (U82)

• SuperPulse™, the welding process with the ability to control the heat input (U82)

• QSet™ – Intelligent welding system

• Creep start, gas pre-flow and hot start provide a soft and more direct start with less spatter

• Crater filling, adjustable burn-gas replace a smooth finish, extend the lifetime of the contact tip and guarantee no cracks at the end

• TrueArcVoltage™ (valid only in combination with the PSF torch range) measures the correct arc voltage value independent of length of the interconnection cable, return cable or welding torch assembly
